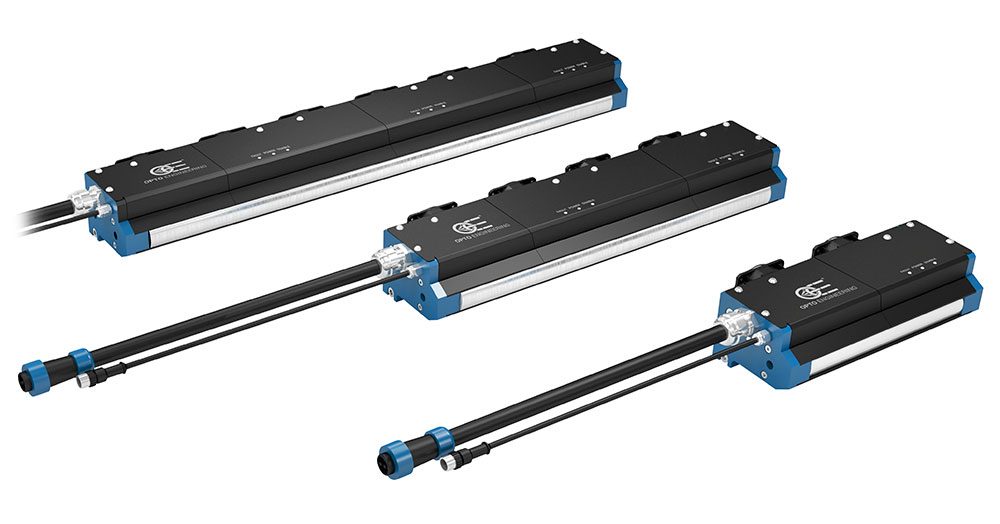

LTLNM-0600-C-FC-W
Specifications
Downloads
Compatible products
Lighting specifications
Modules 3
Illumination area length (mm) 600
Illumination area height (mm) 20
Focusing collimated
Optimal working distance (mm) 10-200
Number of LEDs 144
Light color, peak wavelength white, 6200 K
Illuminance (1) (klux) n.a.
Diffuser no
Electrical specifications
Supply voltage (2) 24
Current (A) 9
Power consumption (W) 216
Estimated MTBF (3) (hours) > 20000
Power connector WEIPU SP2110/P2
Power cables CBLT008 included
I/O connector M12, 5 pins
I/O cables CBLT009 included
Mechanical specifications
Length (mm) 650
Width (mm) 75
Height (mm) 128
Mass (g) 6000
Clamping system 4x M10 threaded holes
Cooling method fan
Environmental specifications
Operating temperature (°C) 0-40
Storage temperature (°C) 0-50
Operating relative humidity (%) 20-85, non condensing
Installation Indoor use only
Eye safety
Risk group according to CEI EN 62471:2010 Risk group 2

Last update 03 Aug 2023

CE
ROHS
REACH
WEEE
UKCA

Notes

  1. Measured at minimum working distance
  2. ± 2%.
  3. Drop to 50% intensity @ 25°C.
All product specifications and data are subject to change without notice to improve reliability, functionality, design or other. Photos and pictures are for illustration purposes only.

Technical documents

Product user guide
LTLNM User Manual

Datasheet

Download datasheet

Layout files

DXF
IGS
PDF
STEP
Despite the efforts made to generate an error-free compatibility list, we always recommend to consult the Opto Engineering® technical support department before purchasing a compatible product. Opto Engineering® shall not be liable for any damage or malfunctioning caused by the incorrect selection of a compatible product.
CBLT series
CBLT series
Cables for LED illuminators
CBLT008
Illumination cable, side 1 industrial circular connector straight, side 2 cable end - 5 m - power supply
CBLT009
Illumination cable , side 1 industrial circular connector straight, side 2 cable end - 5 m - I/O signals
