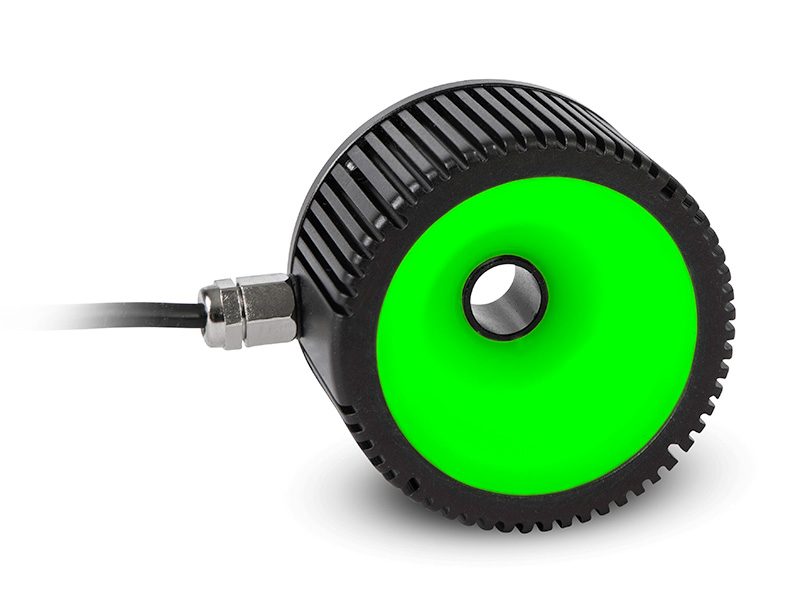

LT3RZF050-60-1-G-24V

Specifications

Lighting specifications
Illumination area outer diameter (mm) 44.0
Illumination area inner diameter (mm) 12.0
Emission angle (deg) 60
Optimal working distance (mm) 5-15
Number of LED rows 1
Light color, peak wavelength green, 525 nm
Illuminance (1) (lux) TBA
Electrical specifications
Supply voltage (2) (V) 24
Current (mA) 120
Power consumption (W) 2.9
Max pulse voltage (3) (V) 24-48 (36 recomended)
Max pulse current (4) (mA) 450
Max duty-cycle (%) 10
Max pulse duration (ms) 10
Connector JST SMR-03V
Cable length (mm) 500
Mechanical specifications
Outer diameter (mm) 56.4
Inner diameter (mm) 10.0
Height (mm) 35.0
Mass (g) 100
Environmental specifications
Operating temperature (°C) 0-45
Operating relative humidity (%) 20-85, non condensing
Eye safety
Risk group according to CEI EN 62471:2010 Exempt

Last update 19 Jan 2023

CE
ROHS
REACH
WEEE
UKCA

Notes

  1. ± 15%. See datasheet for measurments distance
  2. Tolerance ± 2%.
  3. Constant voltage power supply.
  4. Constant current power supply.

Ordering information

Our part numbers are coded as LT3RZFxxx-yy-z-a-bbV where:
- xxx defines the lighting diameter
- yy defines the light angle (for this series the angle is 60 = 60°) - z defines the number of LED rows
- a defines the color: R = red, G = green, B = blue, W = white, RGBW = red, green, blue and white. Contact us for additional wavelengths.
- bb defines the supply voltage. Optional 12V version is available.
All product specifications and data are subject to change without notice to improve reliability, functionality, design or other. Photos and pictures are for illustration purposes only.
