| Lighting specifications | ||
| Illumination area diameter | (mm) | 50 |
| Emission angle | (°) | 60 |
| Number of LEDs | 5 | |
| Light color, peak wavelength | IR 850nm | |
| Spectral FWHM | (nm) | 25 |
| Illuminance (continuous) (1) | (klux) | 0.04 |
| Irradiance (continuous) (1) | (W/m2) | 213.4 |
| Illuminance (boosted) (1) | (klux) | 0.06 |
| Irradiance (boosted) (1) | (W/m2) | 366.7 |
| Illuminance (strobe) (1) | (klux) | 0.18 |
| Irradiance (strobe) (1) | (W/m2) | 685.9 |
| Electrical specifications | ||
| Operating mode | Continuous and strobe | |
| Supply voltage | (V) | 24 |
| Current (continuous) | (mA) | 450 |
| Power consumption (continuous) | (W) | 10.8 |
| Current (boosted) | (mA) | 900 |
| Power consumption (boosted) | (W) | 21.6 |
| Peak current (strobe) | (mA) | 2500 |
| Peak power consumption (strobe) | (W) | 60.0 |
| Min pulse duration | (µs) | 3 |
| Max pulse duration | (ms) | 10 |
| Max duty-cycle | (%) | 10 |
| typical_pulse delay | (ns) | 300 |
| Typical jitter | (ns) | 10 |
| I/O interface | PNP logic input, NPN logic input, analog dimming input | |
| Connector | M12 straight plug male connector | |
| Cables | not included | |
| Mechanical specifications | ||
| Diameter | (mm) | 52.0 |
| Depth | (mm) | 75.0 |
| Mass | (g) | 250 |
| Clamping system | 4x M4 threaded holes | |
| Environmental specifications | ||
| Operating temperature | (°C) | 0-40 |
| Storage temperature | (°C) | 0-50 |
| Operating relative humidity | (%) | 20-85, non condensing |
| Installation | Indoor use only | |
| IP rating | IP67 | |
| Eye safety | ||
| Risk group according to CEI EN 62471:2010 | Risk group 2 | |
Last update 29 Aug 2024
Notes
- At emitting surface.
Ordering information
Our part numbers are coded as LTSP50 - X-YYL, where:
- YYL defines the lens angle in degrees (°)
- X defines the color. R = red, G = green, B = blue, W = white, IR850 = Infrared 850 nm.
LTSP spotlights feature a wide range of compatible optical filters to be ordered separately:
- for horizontal/vertical linear polarizers, refer to PLLT series,
- for protective covers, refer to PCLT series.
Contact us for more customization options.
- YYL defines the lens angle in degrees (°)
- X defines the color. R = red, G = green, B = blue, W = white, IR850 = Infrared 850 nm.
LTSP spotlights feature a wide range of compatible optical filters to be ordered separately:
- for horizontal/vertical linear polarizers, refer to PLLT series,
- for protective covers, refer to PCLT series.
Contact us for more customization options.
All product specifications and data are subject to change without notice to improve reliability, functionality, design or other. Photos and pictures are for illustration purposes only.
Despite the efforts made to generate an error-free compatibility list, we always recommend to consult the Opto Engineering® technical support department before purchasing a compatible product. Opto Engineering® shall not be liable for any damage or malfunctioning caused by the incorrect selection of a compatible product.
CBLTM12-5P-2M
Illumination cable PVC black, Side 1 M12 female connector 5 poles, Side 2 cable end - 2 m
CBLTM12-5P-5M
Illumination cable PVC black, Side 1 M12 female connector 5 poles, Side 2 cable end - 5 m
CBLTM12-5P-10M
Illumination cable PVC black, Side 1 M12 female connector 5 poles, Side 2 cable end - 10 m
PCLTSP50
Protective cover for LTSP50-X, LTSP series
Request a quote
Add this product to the quote request list.

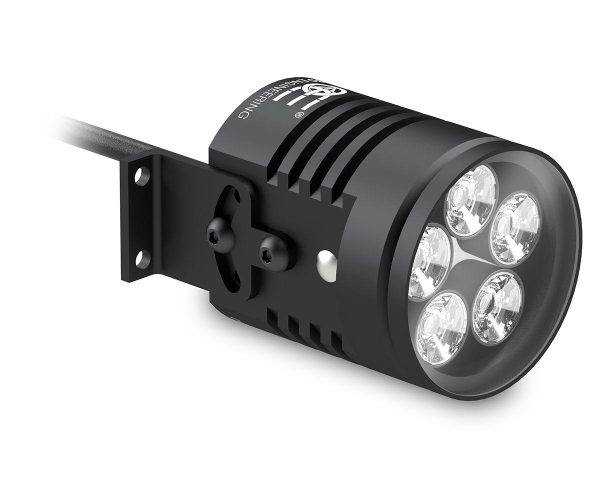

Product images
