| Lighting specifications | ||
| Illumination area width | (mm) | 400.0 |
| Illumination area height | (mm) | 80.0 |
| Light color, peak wavelength | blue, 470 nm | |
| Illuminance (1) | (lux) | TBA |
| Electrical specifications | ||
| Supply voltage (2) | (V) | 24 |
| Current | (mA) | 900 |
| Power consumption | (W) | 21.6 |
| Max pulse voltage (3) | (V) | 24-48 (36 recomended) |
| Max pulse current (4) | (mA) | 2700 |
| Max duty-cycle | (%) | 10 |
| Max pulse duration | (ms) | 10 |
| Connector | JST SMR-03V | |
| Cables | 500 | |
| Mechanical specifications | ||
| Length | (mm) | 436.0 |
| Width | (mm) | 98.0 |
| Height | (mm) | 30.0 |
| Mass | (g) | 852 |
| Environmental specifications | ||
| Operating temperature | (°C) | 0-45 |
| Operating relative humidity | (%) | 20-85, non condensing |
| Eye safety | ||
| Risk group according to CEI EN 62471:2010 | Risk group 2 | |
Last update 20 Oct 2023
Notes
- ± 15%. See datasheet for measurments distance
- Tolerance ± 2%
- Constant voltage power supply
- Constant current power supply
All product specifications and data are subject to change without notice to improve reliability, functionality, design or other. Photos and pictures are for illustration purposes only.
Despite the efforts made to generate an error-free compatibility list, we always recommend to consult the Opto Engineering® technical support department before purchasing a compatible product. Opto Engineering® shall not be liable for any damage or malfunctioning caused by the incorrect selection of a compatible product.
LTIC1CH-A1-4
Analogue lighting controller unit, 4A, 24V
LTIC1CH-D1-4
Digital lighting controller unit, 4A, 24V
LTICGR1000-D1
Analogue lighting controller unit, 1 channel, 24V, 2A, constant mode, power adaptor 24V plug
LTICGR1000-D1-PS-UK
Analogue lighting controller unit, 1 channel, 24V, 2A, constant mode, UK power cord, power adaptor 24V plug
LTICGR1000-D1-PS-US
Analogue lighting controller unit, 1 channel, 24V, 2A, constant mode, US power cord, power adaptor 24V plug
LTICGR1000-D1-PS-EU
Analogue lighting controller unit, 1 channel, 24V, 2A, constant mode, EU power cord, power adaptor 24V plug
LTICGR1000-D1-PS-UK-TB
Analogue lighting controller unit, 1 channel, 24V, 2A, constant mode, UK power cord, power adaptor 24V plug, Illumination cable, side A SM 3 way male connector, side B terminal blocks connector, 24V - 3m
LTICGR1000-D1-PS-US-TB
Analogue lighting controller unit, 1 channel, 24V, 2A, constant mode, US power cord, power adaptor 24V plug, Illumination cable, side A SM 3 way male connector, side B terminal blocks connector, 24V - 3m
LTICGR1000-D1-PS-EU-TB
Analogue lighting controller unit, 1 channel, 24V, 2A, constant mode, EU power cord, power adaptor 24V plug, Illumination cable, side A SM 3 way male connector, side B terminal blocks connector, 24V - 3m
CBSLH-24V-F-5M
Illumination cable, side A flying leads, side B SM 3 way female connector, 24V - 5m
CBSLH-24V-F-3M
Illumination cable, side A flying leads, side B SM 3 way female connector, 24V - 3m
Request a quote
Add this product to the quote request list.

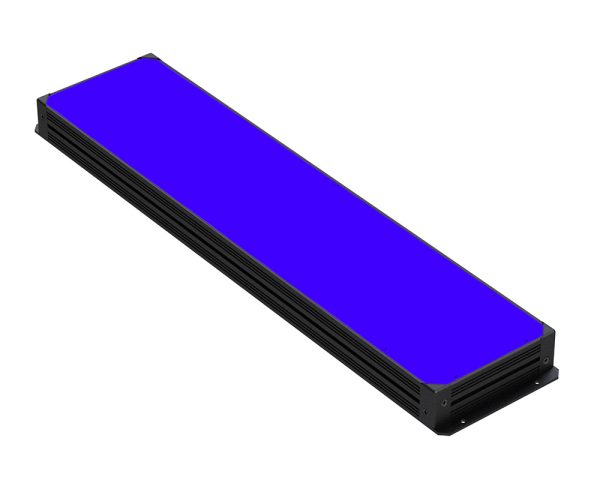

Product images
