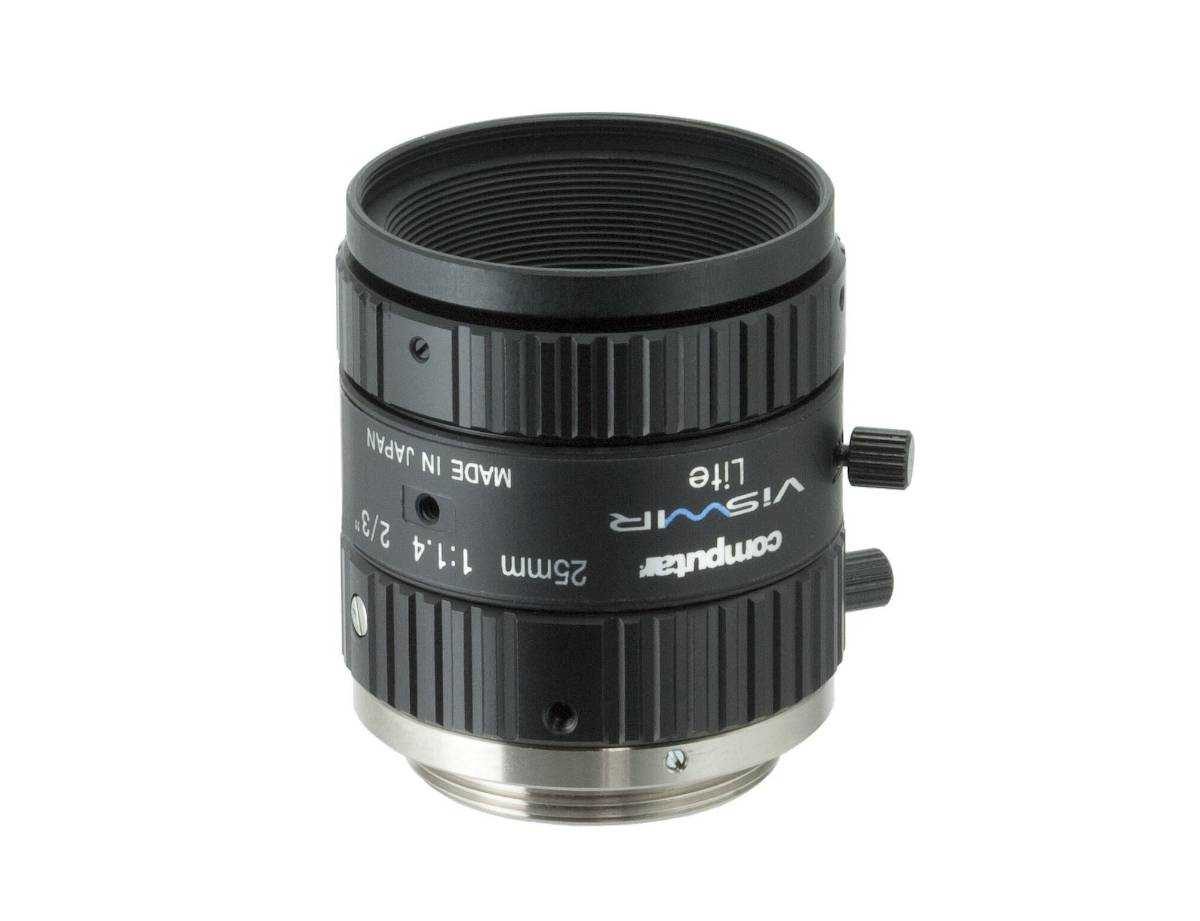

RT-M2514-VSW
Specifications
Downloads
Compatible products
Main optical specifications
Focal length (mm) 25
Image circle diameter (mm) 11.0
Max sensor size 2/3″
Angle of view
1/2" - IMX990 (deg) 18.6
2/3" (deg) 24.9
Advanced optical specifications
Working distance range (2) (m) 0.3 - inf
Wavelength range (3) (nm) 400-1700
ƒ/N 1.4 - closed
Back focal length (mm) 13.1
Distortion on 1/2" (4) (%) 0.10
Distortion on 2/3" (4) (%) 0.3
Mechanical specifications
Iris control Manual
Focus control Manual
Mount C
Filter thread M30.5 x 0.5
Outer diameter (mm) 33.5
Length (5) (mm) 36.0
Mass (g) 71

Last update 13 Nov 2023

REACH

Notes

  1. Calculated at minimum object distance.
  2. Working distance: distance between the front end of the mechanics and the object.
  3. High transmittance across the wavelength range due to broadband AR coating. Designed for imaging with single wavelength narrowband illumination.
  4. Percent deviation of the real image compared to an ideal, undistorted image.
  5. Measured from the front end of the mechanics to the camera flange at infinity focus.
All product specifications and data are subject to change without notice to improve reliability, functionality, design or other. Photos and pictures are for illustration purposes only.
