Macros and flat telecentric lenses for 4k linescan detectors

Macros and flat telecentric lenses for 4k linescan detectors

Opto Engineering offers a complete line-up of products designed to fit 4k linescan detectors.

MC4K macro lenses fit both 4k linescan cameras and matrix detector cameras over 4/3″, available in 0.25X, 0.50X, 0.75X, 1.00X, 1.25X, 1.50X, 1.75X, 2.00X magnification factors, F or M42x1 camera mount. They offer:

  • Macro design
    Achieve unmatched resolution in critical applications: these objectives consistently deliver superior image quality than standard fixed focal length lenses used with extension tubes.
  • Exceptional low distortion
    Perform measurement tasks with a high degree of accuracy and reliability.
  • Optimized aperture
    For each magnification, the f/# is optimized to ensure the best field depth and image resolution.
  • Easy front filter insertion
    Thanks to the front M30.5×0.5 thread
MC4K macros are effectively used for print and web inspection.

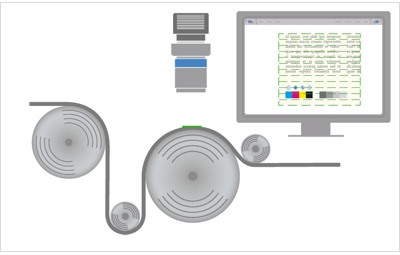

MC4K macros are effectively used for print and web inspection.

TC4K telecentric lenses and matching LTCL4K illuminators fit 4k linescan detectors up to 28.7 mm, such as 4096 px with pixel size 7 μm; available for 60, 90, 120, 180 mm fields of view, F or M42x1 camera mount. They offer:

  • Compact design
    “Flat” shape for easy integration
  • Easy rotational phase and focus adjustment
    Robust and precise tuning of FOV phase angle and best focus position
  • Dedicated CMMR4K mirrors
    90° deflection of the light path for usage in tight spaces and easy integration
TC4K lens used in combination with CMMR4K mirrors and LTCL4K illuminator to image a gear shaft.

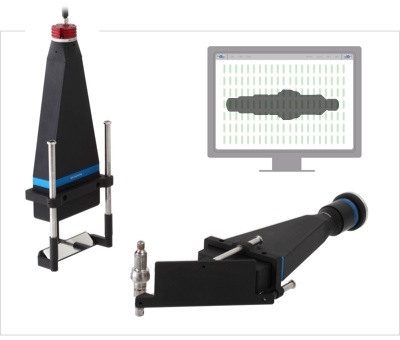

TC4K lens used in combination with CMMR4K mirrors and LTCL4K illuminator to image a gear shaft.
