Boost your vision system with LTBRZ3 LED bar lights featuring constant current driving electronics
News

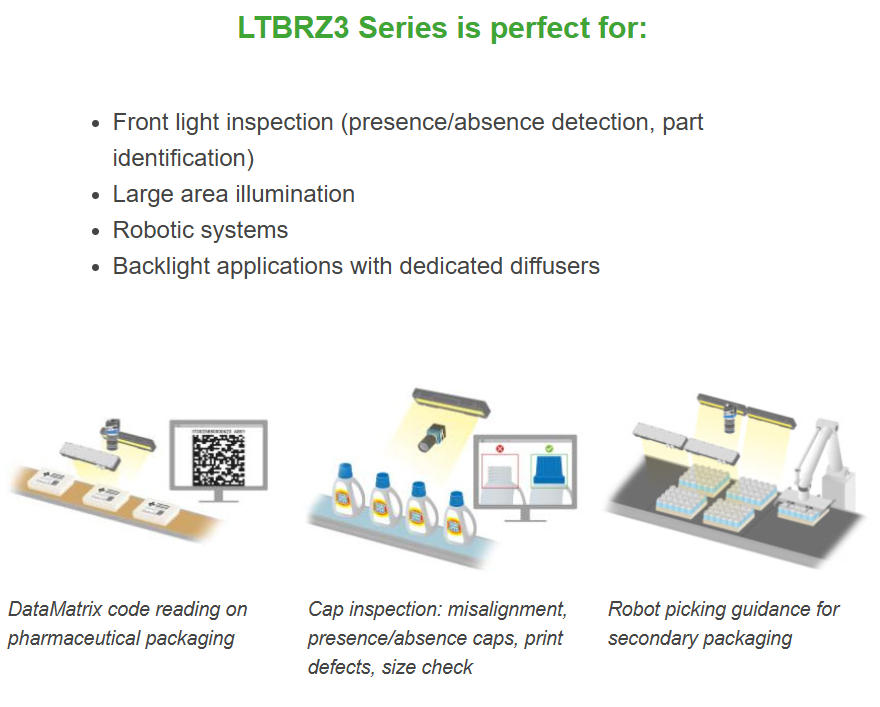

The LTBRZ3 series of bar lights by Opto Engineering offers a powerful and versatile lighting solution for industrial vision systems, combining high brightness, compact design, and easy integration.
Key Advantages
- Integrated constant current driving electronics for stable and reliable performance.
- Precise control: analog dimming or built-in manual potentiometer.
- Compact lightweight design (only 33 mm thick) for easy mounting.
- Active area of 295x25 mm with 12 high-intensity LEDs.
- Daisy-chain connectivity: link up to 4 units in series.
- M12 5-pin connector, ideal for industrial environments.
- Operating modes: continuous or strobe models (triggered via NPN/PNP signals).
- Built-in protection against overheating and strobe duty-cycle limitations.
| Colors | Red, green, blue, white, infrared |
| Operating mode | Continuous or Strobe |
| Emission angles | Circular: 10°, 20°, 30°, 50° Elliptical: 35° x 15° Diffused: for backlighting |
| Optional polarizers | Horizontal (PH) or Vertical (PV) |
| Daisy chain option | Up to 4 units |
