| Electrical specifications | ||
| User interface (1) | Ethernet (TCP/IP) | |
| Connectors | 1x RJ45, 1x USB Type A, 2x Terminal blocks, 3x DB15HD female | |
| Status LED | Ethernet activity LED, RGB LED for each motor status | |
| DC power supply | (V) | 24 |
| Max power consumption | (W) | 96 |
| Protections | ESD, polarity inversion, overvoltage, undervoltage, output overcurrent, shorted output, open output, overtemperature | |
| Functions | ||
| Control type | Closed-loop, open-loop | |
| Motion mode | Positioning mode (relative and absolute) with 2 stage velocity ramp | |
| Special features (2) | Advanced motor drive with StealthChop™ and 256x SpreadCycle™, extremely silent operation, adjustable RUN and HOLD currents for optimized power consumption, advanced positioning control in closed-loop operation, motor homing based on encoder reference or limit switch, reduced EMI noise | |
| Configuration software | Integrated web interface (Ethernet), Ethernet DLL library (USB and RS485 to be developed upon request) | |
| Automatic position saving | Yes | |
| Non volatile memory | Yes | |
| Motor parameters | ||
| Number of motors | 3 | |
| Type | Bipolar stepper | |
| RMS winding current | (mA) | 20 to 1250 (adj) |
| Peak winding voltage | (V) | 24 (PWM) |
| Encoder parameters | ||
| Number of encoders | 3 | |
| DC power supply | (V) | 5 |
| Type | Linear/rotary, incremental | |
| Output signals | A, B, Z (index) | |
| Encoder interface | RS422 | |
| Mechanical specifications | ||
| Width | (mm) | 78.0 |
| Length (3) | (mm) | 80.0 |
| Height (3) | (mm) | 84.0 |
| Mounting | DIN rail | |
| Environmental specifications | ||
| Operating temperature | (°C) | 10-40 |
| Storage temperature | (°C) | 0-50 |
| Operating relative humidity | 20-85, non condensing | |
| IP rating | IP20 | |
| Installation | Indoor use only | |
| Compatibility | ||
| Cables | CBMT002, CBETH003 | |
Last update 05 Sep 2023
Notes
- USB and RS485 interface could be implemented upon request
- StealthChop™ and SpreadCycle™ are property of their respective owners.
- Excluded DIN rail.
Ordering information
CBMTxxx cables are required to connect MTDV to compatible lenses. All compatible products must be ordered separately.
See the lens product page for more informations on the proper cable to order.
See the lens product page for more informations on the proper cable to order.
All product specifications and data are subject to change without notice to improve reliability, functionality, design or other. Photos and pictures are for illustration purposes only.
Despite the efforts made to generate an error-free compatibility list, we always recommend to consult the Opto Engineering® technical support department before purchasing a compatible product. Opto Engineering® shall not be liable for any damage or malfunctioning caused by the incorrect selection of a compatible product.
CBMT002
15 wires cable, DB15HD Male to DB15HD Female connector, 2 m
RT-A72-0418-03
Ethernet cable, CAT6A, industrial level,high flexible cable with screw, 3 m
RT-A72-0418-05
Ethernet cable, CAT6A, industrial level,high flexible cable with screw, 5 m
RT-A72-0418-10
Ethernet cable, CAT6A, industrial level,high flexible cable with screw, 10 m
RT-A72-0418-15
Ethernet cable, CAT6A, industrial level,high flexible cable with screw, 15 m
Request a quote
Add this product to the quote request list.

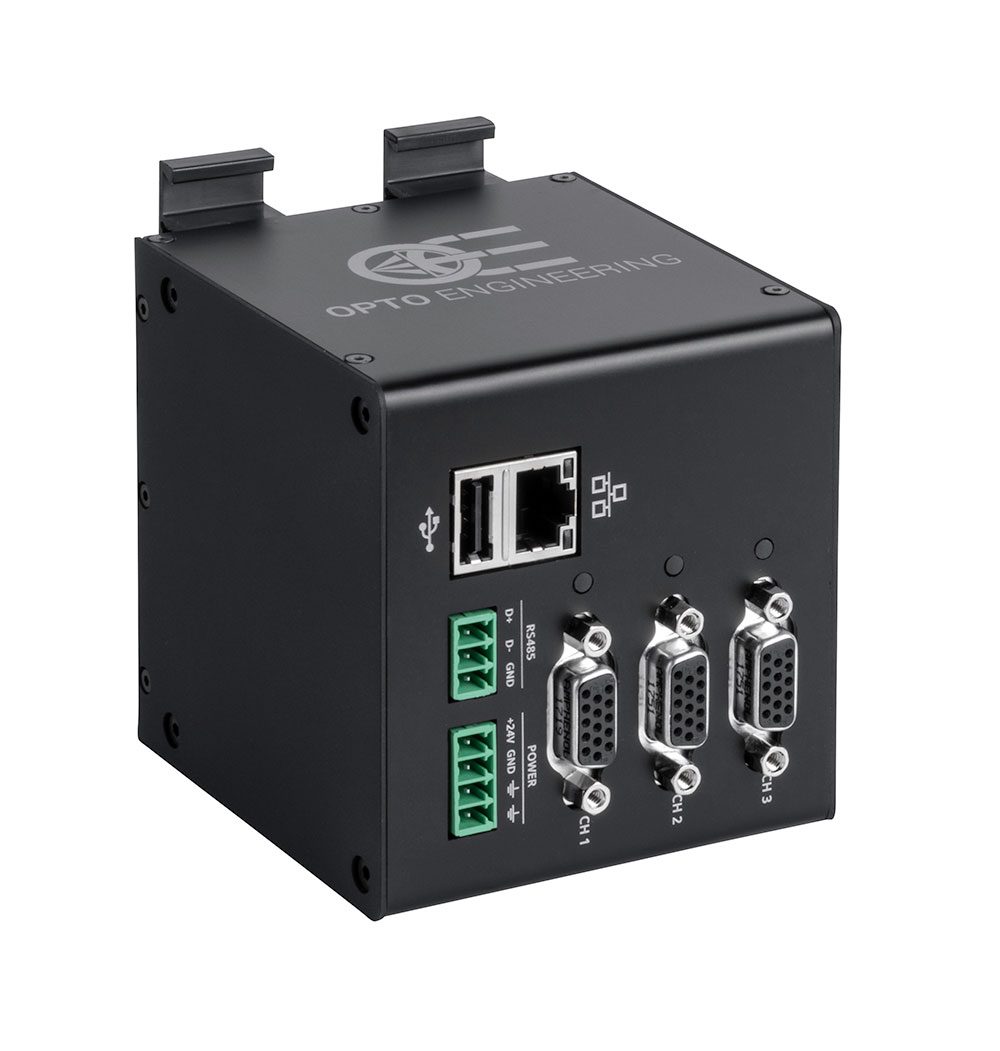

Product images
