High resolution, large aperture and low distortion are some of the most critical requirements in today’s machine vision applications.
To provide excellent optical performance while maximizing incoming light and resolution, Opto Engineering® recently introduced the new TC2MHRP and TC2MHRP CORE telecentric lenses.
These brand-new optics designed for high-resolution 1" sensors feature a very large optical aperture and offer unmatched resolution and homogeneous image quality to perform even the most demanding applications.
Available in both standard and innovative ultra-compact CORE designs, TC2MHRP lenses are robust and easy to integrate into any industrial environment and are the perfect choice for advanced metrology applications.

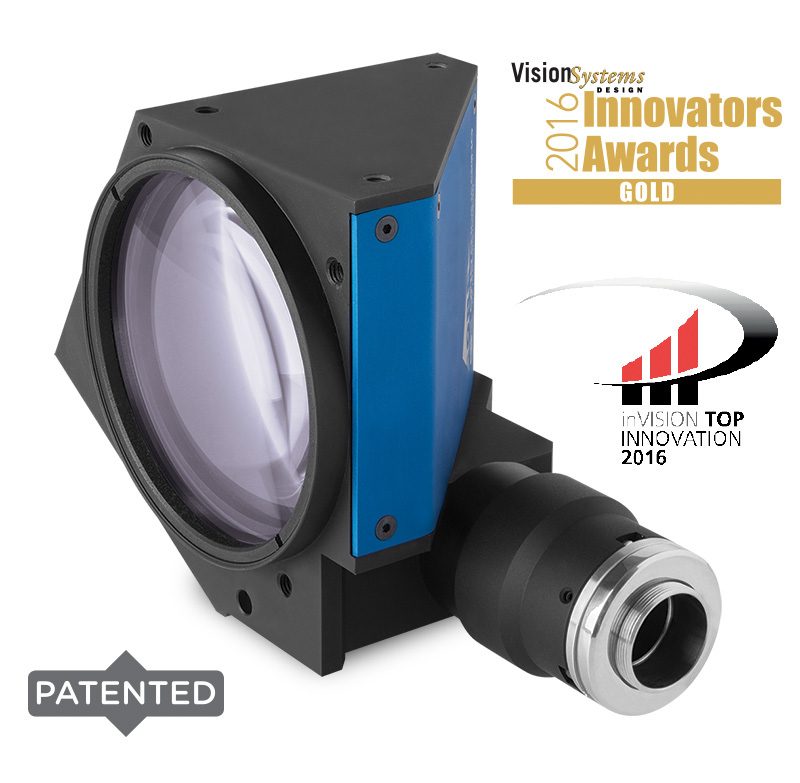

About Opto Engineering® CORE Technology
Opto Engineering® CORE telecentric lenses (B) are up to 70% smaller than other telecentric lenses available on the market (A).
This unique design keeps the vision system extremely compact and efficient while reducing manufacturing, shipping and storage costs.

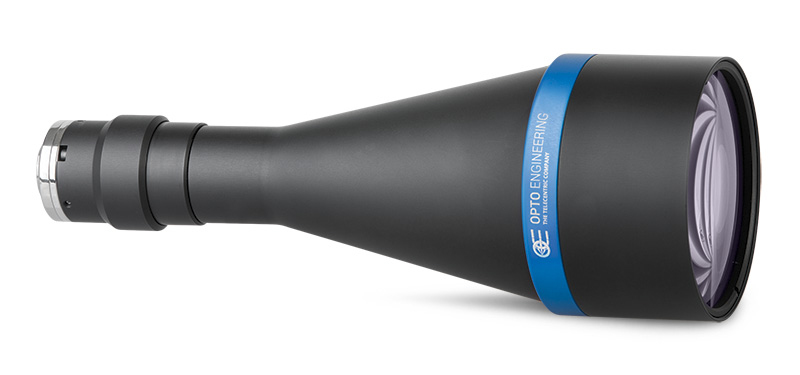

TC2MHR Series
High-resolution telecentric lenses for sensors up to 1”
| TC2MHRP016-C High-resolution telecentric lens for 1" sensors, magnification 0.768x, C mount |
| TC2MHRP024-C High-resolution telecentric lens for 1" sensors, magnification 0.509x, C mount |
| TC2MHRP036-C High-resolution telecentric lens for 1" sensors, magnification 0.354x, C mount |
| TC2MHRP048-C High-resolution telecentric lens for 1" sensors, magnification 0.267x, C mount |
| TC2MHRP056-C High-resolution telecentric lens for 1" sensors, magnification 0.228x, C mount |
| TC2MHRP064-C High-resolution telecentric lens for 1" sensors, magnification 0.200x, C mount |
| TC2MHRP080-C High-resolution telecentric lens for 1" sensors, magnification 0.160x, C mount |
| TC2MHRP096-C High-resolution telecentric lens for 1" sensors, magnification 0.136x, C mount |
| TC2MHRP120-C High-resolution telecentric lens for 1" sensors, magnification 0.104x, C mount |
| TC2MHRP144-C High-resolution telecentric lens for 1" sensors, magnification 0.089x, C mount |

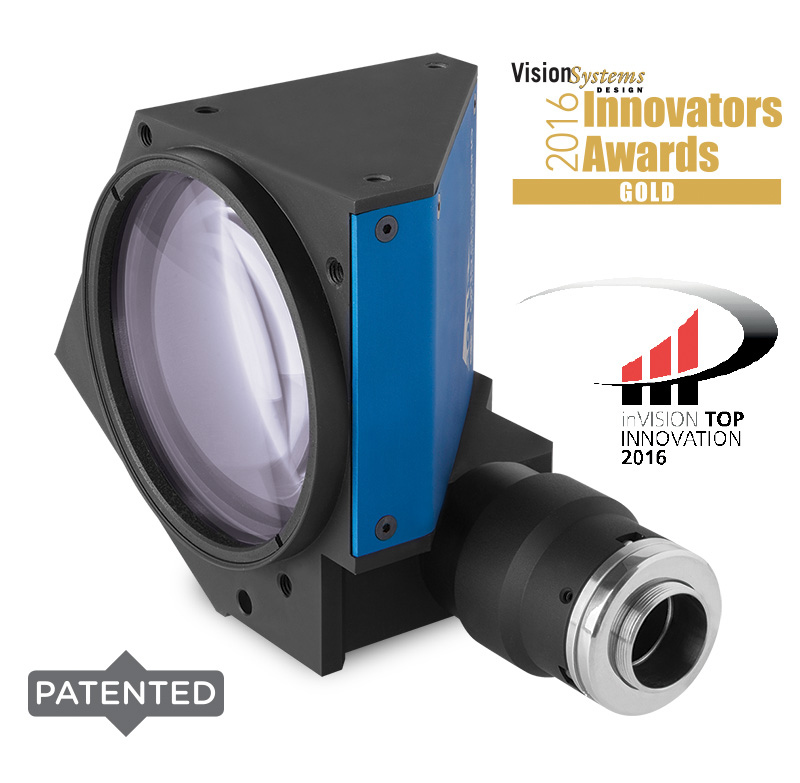

TC2MHR CORE Series
Compact telecentric lenses for sensors up to 1”
| TCCR2MP048-C Telecentric CORE lens for 1" sensors, magnification 0.267x, C mount, WD 132.9 mm |
| TCCR2MP056-C Telecentric CORE lens for 1" sensors, magnification 0.228x, C mount, WD 157.8 mm |
| TCCR2MP064-C Telecentric CORE lens for 1" sensors, magnification 0.200x, C mount, WD 181.9 mm |
| TCCR2MP080-C Telecentric CORE lens for 1" sensors, magnification 0.160x, C mount, WD 226.8 mm |
| TCCR2MP096-C Telecentric CORE lens for 1" sensors, magnification 0.136x, C mount, WD 278.6 mm |
| TCCR2MP120-C Telecentric CORE lens for 1" sensors, magnification 0.104x, C mount, WD 334.6 mm |
