We are proud to introduce Opto Engineering® all-new line lights LTLNE series designed for linescan applications such as transparent films or glass inspection and detection of dents on metal sheets.

KEY ADVANTAGES

» 300 mm active area

» 3 types of projection lenses
Near field focusing (N), far field focusing (F), collimated (C).

» 3 opto-mechanical configurations
Lens only, coaxial illumination (CX) or with 45° mirror (MR).

» 2 cooling methods and power intensities
Passive 2 Amps / 50W
Active (fan cooled) 4 Amps /100W

» Optional diffusive sheet (D) for illumination uniformity

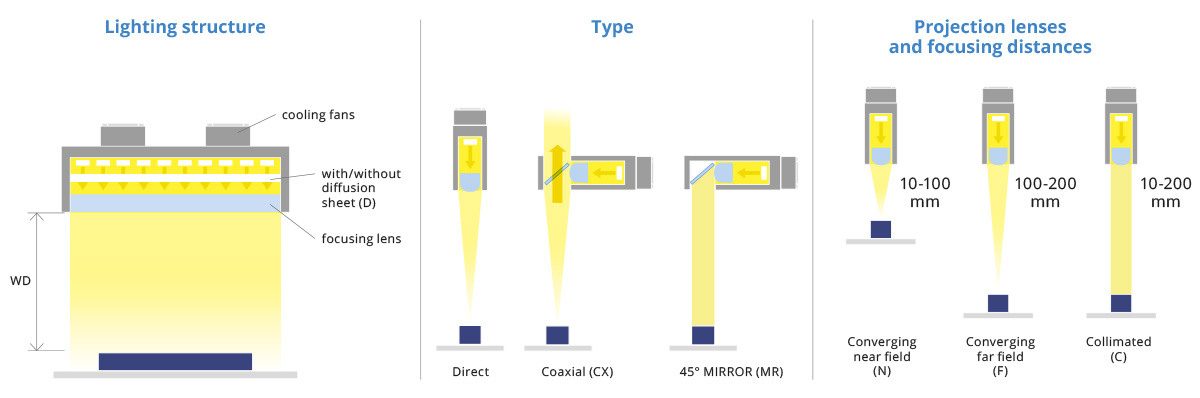

LTLNE series are LED line illuminators featuring 300mm active area. LTLNE are available in three opto-mechanical versions:

• basic configuration with condensing lens;
• as coaxial line lights;
• integrating a 45° mirror.

LTLNE are supplied with different light angles/focusing distances:

• near field (10 – 100 mm) or far field (100 – 200 mm) focused with converging rays;
• collimated working at a distance between 10 and 200 mm.

Application examples include:

To receive more information about LTLNE series and our full range of LED illuminators contact our sales engineers.

Custom sizes and colors upon request.
Download LTLNE user manual here.

Having troubles finding the light that you are looking for?

It’s easy to pick the right illuminator using our LED illuminators selection charts: simply match the longest side of your sample with the light type required by your application and you will be suggested the most suitable light model from our catalog.
