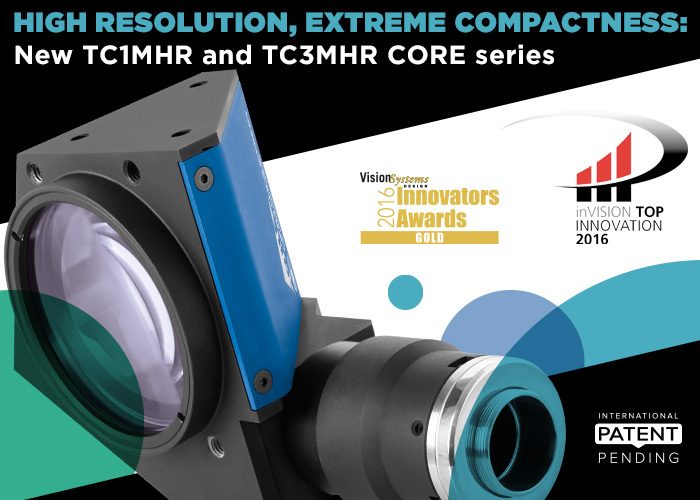

TC1MHR-CORE LENSES FOR UP TO 1/1.2″ SENSORS

TCCR1M048-C

Telecentric CORE lens for 1/1.2″ detectors, magnification 0.222 x, mount C, WD=132.4

TCCR1M056-C

Telecentric CORE lens for 1/1.2″ detectors, magnification 0.190 x, mount C, WD=157.8

TCCR1M064-C

Telecentric CORE lens for 1/1.2″ detectors, magnification 0.166 x, mount C, WD=181.9

TCCR1M080-C

Telecentric CORE lens for 1/1.2″ detectors, magnification 0.134 x, mount C, WD=226.8

TCCR1M096-C

Telecentric CORE lens for 1/1.2″ detectors, magnification 0.114 x, mount C, WD=278.6

TCCR1M120-C

Telecentric CORE lens for 1/1.2″ detectors, magnification 0.087 x, mount C, WD=334.6

TC3MHR-CORE LENSES FOR UP TO 1.1″ SENSORS

TCCR3M048-C

Telecentric CORE lens for 1.1″ detectors, magnification 0.303 x, mount C, WD=132.9

TCCR3M056-C

Telecentric CORE lens for 1.1″ detectors, magnification 0.259 x, mount C, WD=157.8

TCCR3M064-C

Telecentric CORE lens for 1.1″ detectors, magnification 0.227 x, mount C, WD=181.9

TCCR3M080-C

Telecentric CORE lens for 1.1″ detectors, magnification 0.182 x, mount C, WD=226.8

TCCR3M096-C

Telecentric CORE lens for 1.1″ detectors, magnification 0.153 x, mount C, WD=278.6

TCCR3M120-C

Telecentric CORE lens for 1.1″ detectors, magnification 0.118 x, mount C, WD=334.6

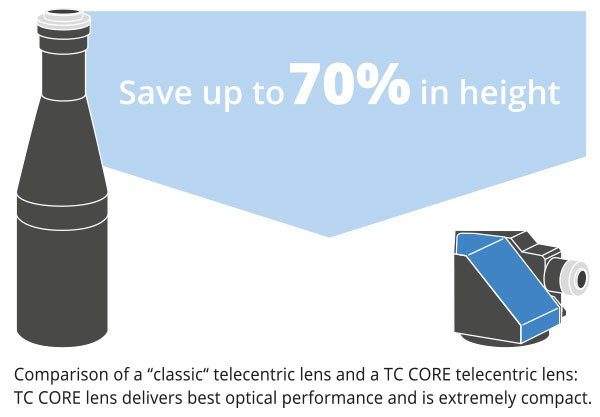

With a full range of compact telecentric lenses optimized for 1/1.2” sensors, these new series allow to downsize your vision system saving up to 70% in length compared to similar FOV lenses on the market.

Typical applications include precise dimensional measurement of mechanical components, preform check, glass bottles and vials inspection, defect detection on smartphone screens.

Don’t hesitate: contact our sales engineer to discover more about the new products.
